Oil Analysis Instruments
Leading Manufacturers, Exporters, Wholesaler, Trader and Distributor of KL-PC-2 Oil Particle Counter, The KLED-61 Quick Oil Analyzer and The KLTL-2 Ferrous Debris Tester from Mumbai.
| Business Type | Manufacturer, Supplier |
| Light Source | Semiconductor Laser |
| Testing Range | 1~100pm or 4~70um |
| Sensitivity | 1m (1ISO4402) or 4um (C) (ISO 11171) |
| Particle size range | um, 2pm, Sum, 10pm, 15um, 25um, 50pm, 100um; 4um(c), 4.6um(c), 6um(c), 10um(c), 14umic), 21um(c), 38 |
| Accuracy | +0.5 pollution degree |
| Size | 100mm*75mm*7 Imm{L *W*H) |
| Humidity | Work under relative humidity 20%~85%, no condensation, storage humidity 98% |
Preferred Buyer From
| Location | Worldwide |
KL-PC-2 Oil Particle Counter
| Business Type | Manufacturer, Exporter, Supplier |
| Battery | Rechargeable lithium, 4 hours |
| Display | 5-inch touch screen |
| Heat Device | Up to 100 for oil viscosity analysis |
| Sensors | Oil viscosity, density, temperature, dielectric constant, moisture, micro-moisture, etc. |
| Operation | Touchscreen interface |
| Error Monitoring | On-screen hints for incorrect operations |
| Durability | Suitable for high-pressure and high-velocity environments |
| Coating | Corrosion and pollution-resistant |
| Applications | Various industrial sectors as mentioned above |
Preferred Buyer From
| Location | Worldwide |

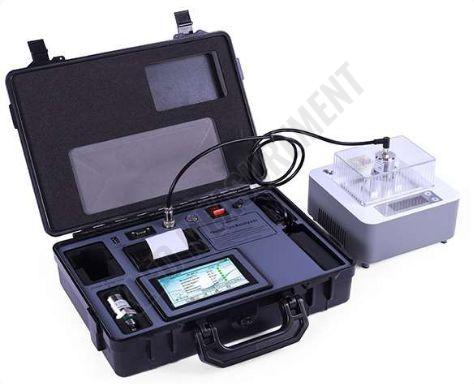

Experience the next level of oil analysis with the KLED-61 Quick Oil Analyzer. This portable device, designed by KLED IoT Sensing Pvt Ltd, utilizes plate type oil sensor technology to provide accurate and efficient on-site oil analysis.
Key Features
- 5-inch Touch Screen
- Rechargeable Battery
- Heat Device
- On-Site Analysis
- Printing Capability
| Business Type | Manufacturer, Supplier, Retailer |
| Measuring Range | 0-5500 mg/L (PPM) |
| Sensitivity | 1 mg/L (PPM) |
| Detection Repeatability | ≤1% RSD |
| Sampling Volume | 2 ml |
| Power | AC 100-240V, 50/60Hz |
| Working Hours | >5 hours |
| Dimension | 250 x 218 x 133 mm |
| Instrument Weight | 2.7 kg |
Preferred Buyer From
| Location | Worldwide |
The KLTL-2 Ferrous Debris Tester is a portable device designed to detect potential machinery degradation early. Its electromagnetic induction technology offers exceptional sensitivity and ease of use.
Enables precise measurement of ferromagnetic particles in oil samples. Sample Volume Efficiency: Requires a mere 2ml of oil sample for highly accurate measurements. User-Friendly Operation: Intuitive touchscreen interface for easy and straightforward operation. Instant Display: Immediate and precise test results shown on a 5-inch touchscreen display. Portability: Encased in a durable suitcase, facilitating effortless use in the field or laboratory settings. Advanced Components: Includes a high-performance ARM processor, ferromagnetic sensor, USB interface, and a reliable built-in battery. No Sample Preparation: Streamlines the process by eliminating the need for additional sample preparation before measurement. No Training Required: Users can operate the device effectively without specific training or extensive learning curves. On-Site Analysis: Features a built-in battery for convenient on-site oil analysis without relying on external power sources. Independent Calibration: Calibration remains unaffected by the base fluid used, ensuring consistent and reliable measurements across various oil types.
Advantages :
- Speed Fast measurement with good repeatability.
- Ease of Use All operations can be completed via the touchscreen interface.
- Language Full English interface for immediate display of test results.
- Trend Analysis Capability for root cause analysis of poor lubrication through trend checks
