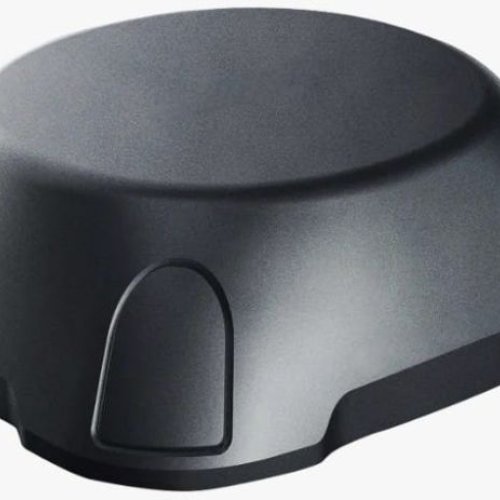

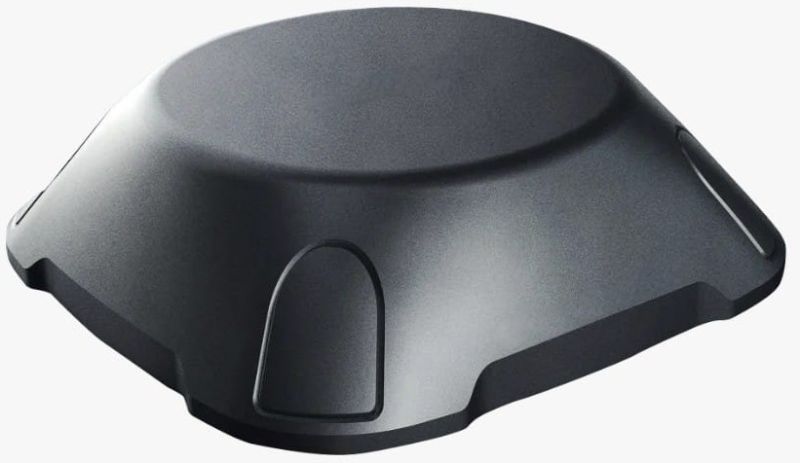

Car Parking Sensor KDC10

• Model: KDC-10

• Function: Parking occupancy detection (geomagnetic + 24GHz microwave)

• Magnetometer: Yes

• Bluetooth: 5.1

• Radar Frequency: 24GHz

• Accuracy Rate: ≥98%

• Detection Methods: Geomagnetic induction + 24G microwave detection

• Water Coverage Detection: Supported (switches to geomagnetic mode when covered by water)

• Detection Interval: 8 seconds (configurable)

• Detection Distance: 0.5 – 1.2m (configurable)

Wireless Parameters:

• Protocol: LoRaWAN® 1.0.3

• Frequency Bands: EU868 (optional CN470 / IN865 / US915 / AU915 / AS923)

• Transmitting Power: 18.5 ±1 dBm (max)

• Sensitivity: -135 ±1 dBm (max) @SF=12

• Mode: OTAA / ABP, Class A

• LoRaWAN Port: Default 10 (range 1–233)

• Dev EUI: Unique per device (on product label)

• App EUI: Default 083FBC0065000001

• AppSKey: Default 2D35C7963275D743B4E73BEA91681A3B

Configuration & Software:

• Configure Mode: Platform, Bluetooth

• Functions: Low battery alert, OTA upgrade (over Bluetooth/LoRaWAN)

Physical Properties:

• Power Supply: 2 × ER26500 Li-SOCl₂ batteries (17Ah, 3.6V)

• Battery Life: >5 years (at 10 reports/day)

• Working Temperature: -40°C to +80°C

• Working Humidity: 10% – 90% (non-condensing)

• Size: 125 × 125 × 75 mm

• Protection Level: IP68

• Installation: Surface Mounted

• Main Material: Stress-resistant, UV-resistant plastic
