- Mumbai, Maharashtra
Wireless Lorawan Sensors

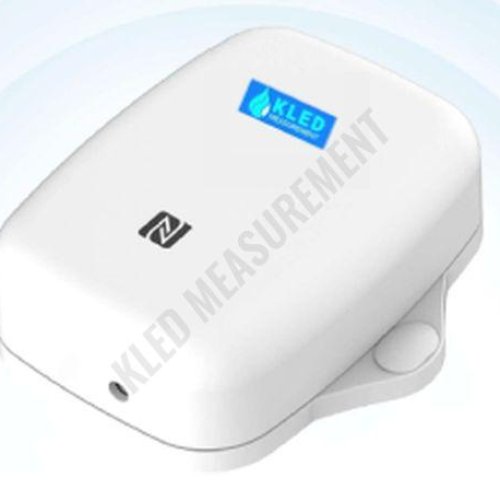

Leading Manufacturers, Exporters, Wholesaler, Trader and Distributor of AM102 Indoor Ambience Monitoring Sensor, Car Parking Sensor KDC10, Kl 213 Lorawan Ultrasonic Water Meter, KL300-TH Temperature & Humidity Sensor, KL320-TH Temperature & Humidity Sensor and Ultrasonic Water Flow Meter from Mumbai.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| DataSheet |  View |
| Power Supply | 2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries |
| Battery Life* | KL102: Over 7 Years |
| Operating Temperature | -20°C ~ 60°C (E-Ink Screen: 0°C ~ 40°C) |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| Ingress Protection | IP30 |
| Dimension | 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in) |
| Business Type | Supplier, Distributor |
| Conditon | New |
| Warranty | 1year |
| Type | Car Parking Sensor |
| Application | Car Parking |
| Color | Black |
| Material | Plastic |
| Delivery Time | 3-4 weeks |
-
Model: KDC-10
-
Function: Parking occupancy detection (geomagnetic + 24GHz microwave)
-
Magnetometer: Yes
-
Bluetooth: 5.1
-
Radar Frequency: 24GHz
-
Accuracy Rate: ≥98%
-
Detection Methods: Geomagnetic induction + 24G microwave detection
-
Water Coverage Detection: Supported (switches to geomagnetic mode when covered by water)
-
Detection Interval: 8 seconds (configurable)
-
Detection Distance: 0.5 – 1.2m (configurable)
Wireless Parameters:
-
Protocol: LoRaWAN® 1.0.3
-
Frequency Bands: EU868 (optional CN470 / IN865 / US915 / AU915 / AS923)
-
Transmitting Power: 18.5 ±1 dBm (max)
-
Sensitivity: -135 ±1 dBm (max) @SF=12
-
Mode: OTAA / ABP, Class A
-
LoRaWAN Port: Default 10 (range 1–233)
-
Dev EUI: Unique per device (on product label)
-
App EUI: Default 083FBC0065000001
-
AppSKey: Default 2D35C7963275D743B4E73BEA91681A3B
Configuration & Software:
-
Configure Mode: Platform, Bluetooth
-
Functions: Low battery alert, OTA upgrade (over Bluetooth/LoRaWAN)
Physical Properties:
-
Power Supply: 2 × ER26500 Li-SOCl₂ batteries (17Ah, 3.6V)
-
Battery Life: >5 years (at 10 reports/day)
-
Working Temperature: -40°C to +80°C
-
Working Humidity: 10% – 90% (non-condensing)
-
Size: 125 × 125 × 75 mm
-
Protection Level: IP68
-
Installation: Surface Mounted
-
Main Material: Stress-resistant, UV-resistant plastic
| Business Type | Manufacturer, Exporter, Supplier, Trader |

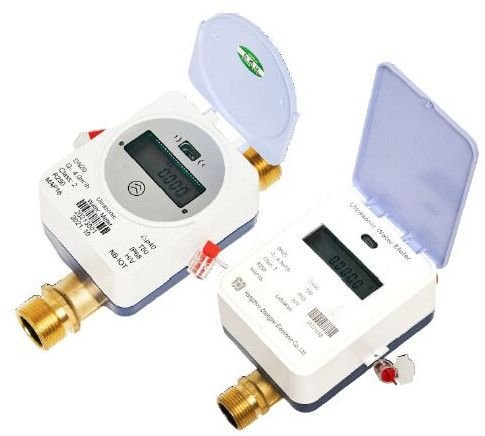

| Name | KL 213 LoRaWAN Ultrasonic Water Meter |
| Number Of Flower | Ultrasonic Water Meter |
| Material | Plastic And Metal |
| Packaging | Standard Packaging |
| Application | Water Metering |
| Communication Protocol | LoRaWAN |
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| DataSheet | View |
| Operating Temperature | -30°C To +60°C |
| Power Supply | 2 × 2700 mAh ER14505 Li-SOCL2 Batteries |
| Battery Life* | ≥5 years |
| Relative Humidity | ≤95% |
| Material & Color | ABS + PC (Food Grade), White |
| Ingress Protection | IP67 |
| Dimension | 85 × 58 × 18 mm (3.34 × 2.28 × 0.70 in) |
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| DataSheet | View |
| Power Supply | 2 × 2700 mAh ER14505 Li-SOCL2 Batteries |
| Battery Life* | ≥5 years |
| Operating Temperature | -30°C to +60°C |
| Relative Humidity | ≤95% |
| Material & Color | ABS + PC (Food Grade), White |
| Ingress Protection | IP67 |
| Dimension | 85 × 58 × 18 mm (3.34 × 2.28 × 0.70 in) |
| Business Type | Supplier, Distributor |
| Pressure | Low Pressure, Medium Pressure, High Pressure |
| Shape | Rectangular |
| Driven Type | Battery |
| Finishing | Polished |
| Material | Brass |
| Brand Name | KLED Measurement |

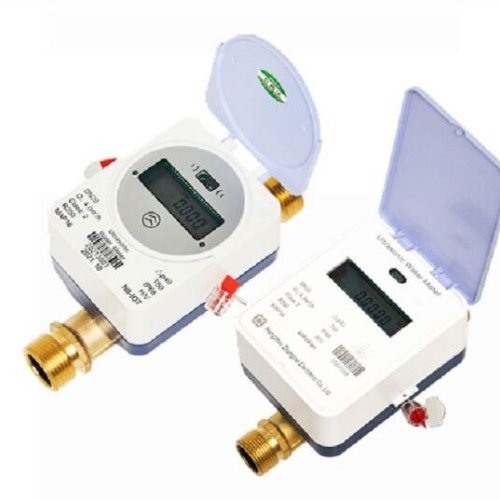

- Wireless Communication: Utilizes LoRaWAN protocol for long-range, low-power wireless data transmission, suitable for remote water metering applications.
- Ultrasonic Measurement: Employs ultrasonic technology for precise, contactless water flow measurement, improving accuracy and minimizing maintenance.
- Non-Valve Design: Designed without a control valve, making it ideal for straightforward flow monitoring where valve regulation is not required.
- Smart Meter Functionality: Enables real-time data collection, leak detection, and consumption tracking to support smart water management systems.
- Multiple Size Options: Available in several pipeline diameter options such as 1.5, 2.5, 3.5, 6, and 10 (likely inches or centimeters, depending on standard), accommodating various installation needs
- Durable & Reliable: Engineered for industrial-grade durability, ensuring long-term stable performance in residential, commercial, or municipal water networks.
