- Mumbai, Maharashtra
15,000.00 / Piece( + 18% GST applicable)
| Business Type | Supplier, Distributor |
| Brand Name | KLED MEASUREMENT |
| Material | Stainless Steel |
| Driven Type | Electric |
| Click to view more | |
Product Details
Application
Water Levelling
Voltage
10-36V
Type

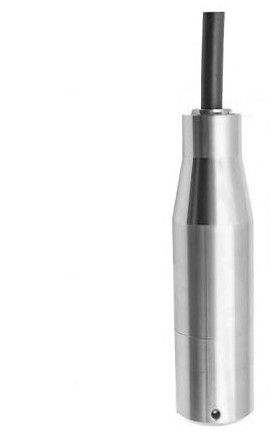

Water Level Sensors
Warranty
1yrs
Ambient Temperature
-40 to 125deg C
Country of Origin
India
Output
4-20mA / 0-10V / RS485
Process Temperature
-40 to 85 deg C
Delivery Time
3-4weeks
Parameter :Specification
Measuring Range: 0–200 m
Overload Pressure: 200% FS Comprehensive
Accuracy: ±1%, ±0.5%, ±0.2%, ±0.1%
Temperature Drift :±0.03%/°C Temperature
Range :-10°C to 70°C Long-term Stability :±0.3%
FS/year Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 125°C Output
Signal: L0–10V / IIC / 4–20mA / RS485
Supply Voltage :10–36V / 3.0–5.5V Load
Resistance :≥10KΩ / ≤50(U–10) Protection Level
:IP68 Media Compatibility: Various noncorrosive fluids Vibration Resistance 10g RMS
(20–2000Hz)
Shock Resistance :100g, 11ms Insulation
Resistance: >100MΩ @250VDC
Response Time: Certification CE (EMC:
IEC61326-1 Class B)
