Distance and Level Sensors

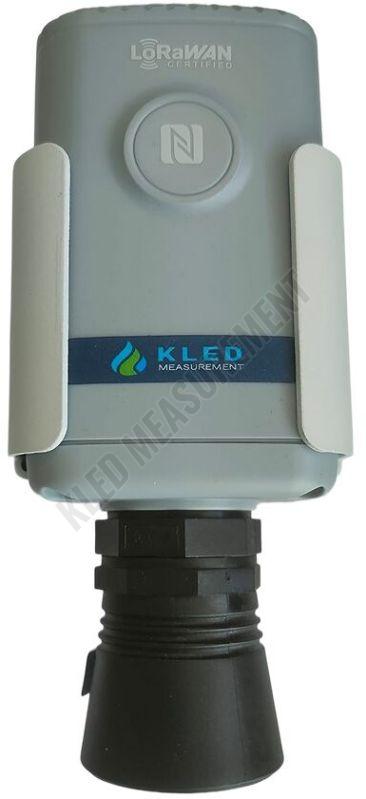

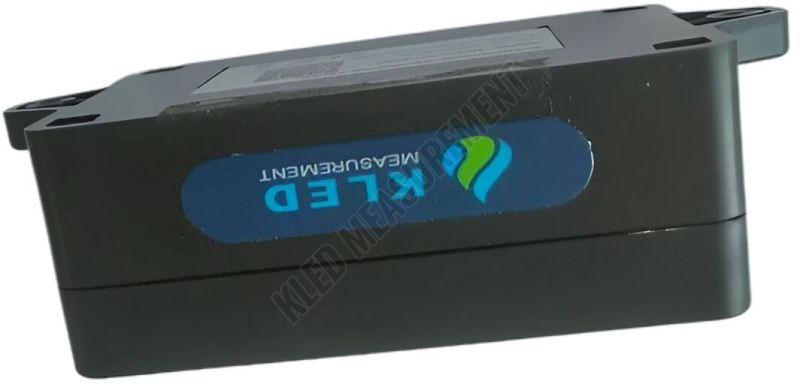

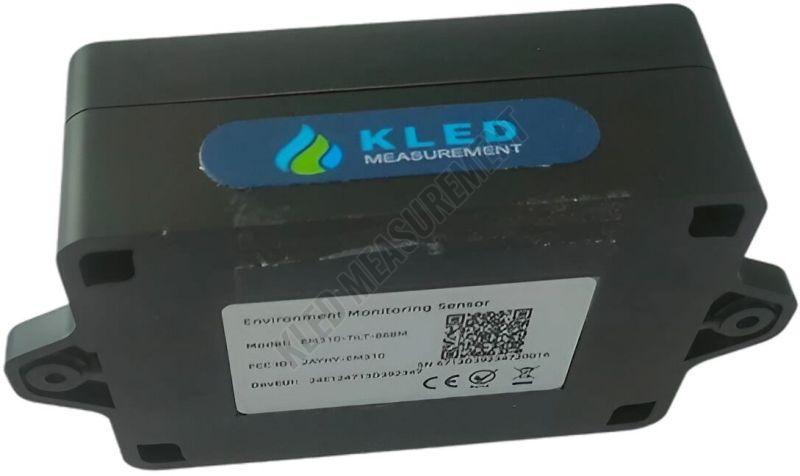

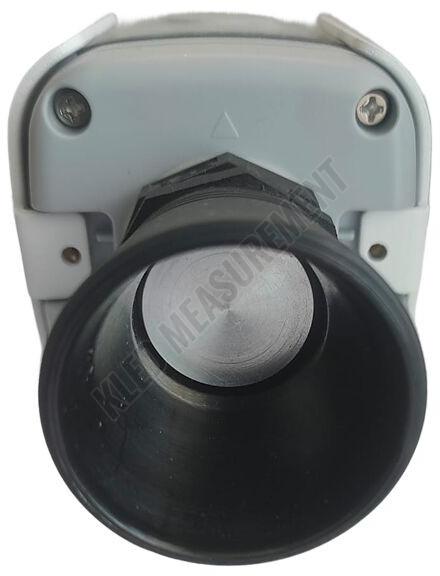

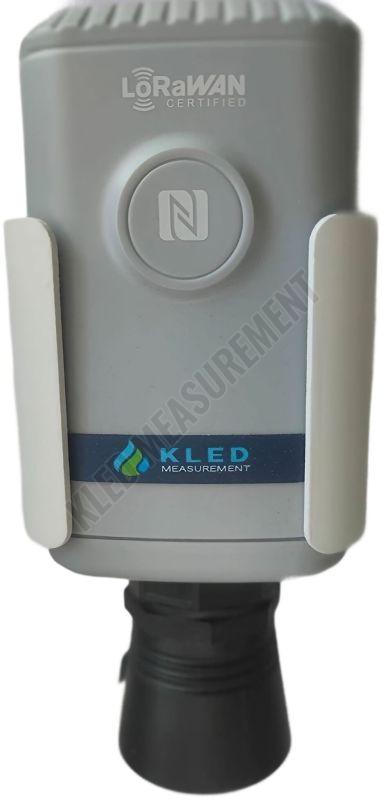

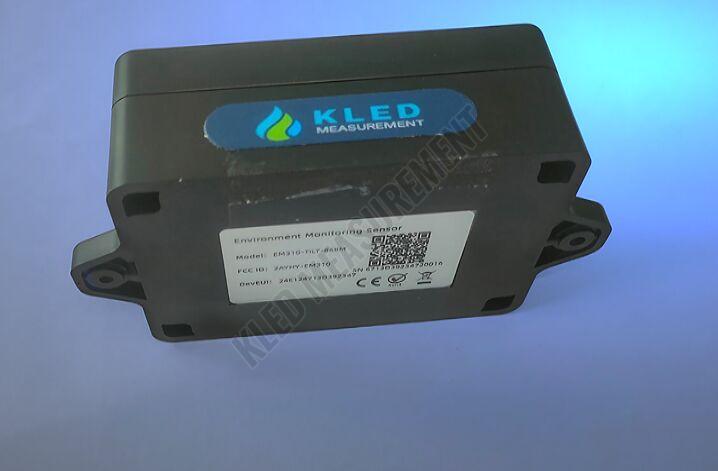

Leading Manufacturers, Exporters, Wholesaler, Trader and Distributor of KL310-UDL Ultrasonic Distance Sensor, KL500-UDL Ultra Sonic Distance Sensor and Radar Water Level Sensor from Mumbai.

Business Type Manufacturer, Exporter, Supplier, Trader
DataSheet View
Power Supply 2 × 3500 mAh ER17505 Li-SOCl2 battery
Battery Life* ≥10 years (10 min interval + 20 triggers per day)
Operating Temperature -15°C to +60°C
Relative Humidity ≤90% (non-condensing)
Ingress protection IP67
Dimension 111 × 62 × 40 mm (4.37 × 2.44 × 1.57 in)
Weight 168g
Material & Color ABS, Black
Installation On the flat surfaces with screws

Click to view more


Request to Call


Business Type Manufacturer, Exporter, Supplier, Trader
DataSheet View
Power Supply 19000 mAh Li-SOCL2 battery (ER34615)
Battery Life* 10 years (10 min interval)
Operating Temperature W050/W100/S050: -30°C to +65°C C050/C100: -15°C to +60°C
Relative Humidity 0% to 80% (non-condensing)
Ingress protection IP67
Dimension 156.1 × 71 × 69.5 mm (6.1 × 2.8 × 2.7 in)
Installation Pole, wall or DIN Rail Mounting

Click to view more


Request to Call


60,000.00 / Piece( + 18% GST applicable)
Get Best Price
Business Type Supplier, Distributor
Nominal Sensing Distance 0.3m-12m
Suitable Media Liquid
IP Protection Class IP68
Country of Origin India
Ambient Temperature 0-100deg C
Warranty 1yrs
Frequency 60Hz
Weight 300-500gm
Type Water Level Sensors
Voltage 0-15VDC
Model Number KL 410 RDL
Application Water Levelling
Automatic Grade Fully Automatic
Housing Material Plastic
Material Plastic
Brand Name KLED MEASUREMENT

Click to view more

  • Technology & Accuracy: Uses 60GHz millimeter wave radar with high accuracy (±2mm) and 1mm resolution for detecting liquids or smooth surface solids.
  • Detection Range: Measures distances from 0.3m to 12m with a narrow 8° detection angle for focused sensing.
  • LoRaWAN Connectivity: Supports LoRaWAN® (Class A, OTAA/ABP) with internal or external antennas, and a sensitivity of -137 dBm, making it ideal for long-range, low-power IoT applications.
  • Cellular Option: Has an optional LTE Cat 1 cellular version with support for multiple bands and Nano SIM slot for broader communication flexibility.
  • Installation & Monitoring: Detects device position (normal/tilt) and is suited for outdoor/industrial environments with optional external antennas for stronger signal performance.



Read More...
